4. Configuration File Settings
The motion driver configuration
settings are held in a .bff configuration file which is selected and
opened when the motion driver is run. There are a wide range of
parameters that can be configured to affect the basic configuration
and motion output by opening and editing the file in a text editor (eg
NotePad).
The detailed pitch, roll, heave,
surge, sway and yaw parameters and the range utilisation parameters
can also be set through the motion driver window using the P, R, H,
Y and M "settings" buttons in the main window. These settings
windows also provide more detailed pop-up tool tips for each of the
parameters.
The Basic, Platform Geometry, Hot
Button/Key, Runway Effect and other non cue related settings should
be made directly in the .bff file before the motion driver is run.
The configuration parameters are:
BASIC SETTINGS
Drvr_Rev=3
Motion driver revision.
Rig_Type=4 Platform Type, must be set
=4 for 6 DOF hexapod platforms. If you are using a rig with pairs of
"handed" crank type actuators then set Rig_Type=5. This will
reverse the movement of one actuator in each pair to ensure the
linear movement at the crank ends are in the correct direction.
Mode=BIN to define motion cue output mode,
see Section 5 for the available output
formats.
Port=COM* set the output COM port
number, COM1, COM2 etc for modes which use a COM port.
Baud=115200 serial output baud rate. Note
for MEM output use with the PID Servo Controller the controller's
baud rate is set in the PID26.cfg file.
Nsets=100 Number of data sets to run
before sending motion data to output. This setting allows the driver
to execute a number of calculation loops to allow the noise and
washout filters to stabilise before starting to export data. The
main function buttons on the driver will remain disabled until the
loops have been executed.
For some versions of the software UDP or TCP comms
are used to receive flight/racing sim telemetry. In these versions
IP address and port settings must be made to enable the comms. The
settings are also used if LAN operation is used (on supporting
versions).
PortS=48001 Receiving Port on this PC - set
as required.
IPAddress=192.168.1.68 IP address of this PC
on the local network - set as required. If the motion software and sim are running on
the same PC then a loop-back IP address of 127.0.0.1 can be usually
used.

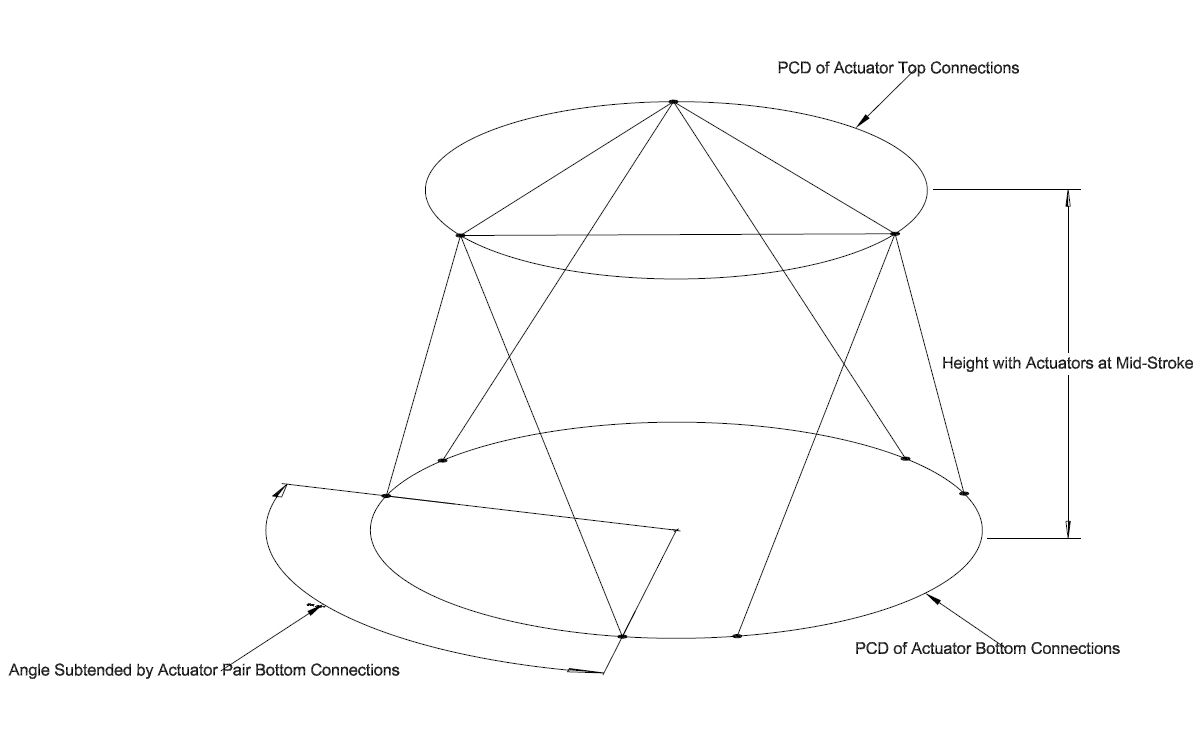

PLATFORM GEOMETRY SETTINGS
Rad_u=475.0 Pitch circle radius of actuator
upper end connections in mm.
Rad_b=775.0 Pitch circle radius of actuator
lower end connections in mm.
H_mid=500.0 Vertical height of upper
connections above lower connections when actuators are at mid stroke
position in mm.
Ang_Sub=110.0 Angle subtended by the lower
end connections of an actuator pair in degrees.
Act_Stroke=250.0 Actuator working
stroke in mm (this is the actual stroke that matches the working
electrical feedback range).
Crank_Radius=150 Crank arm radius in mm, if
you are using linear actuators and there is no crank then set =0. If
present the crank radius must be greater than 0.5 x Act_Stroke. The
motion driver will calculate the working crank arm rotation to
deliver the specified actuator stroke. When this parameter is active
it is assumed that the position feedback is made with reference to
crank arm (or drive shaft) rotation (not actuator linear movement)
and the driver position demand outputs will be corrected for the
trigonometry of the crank/push rod arrangement.
The software will assume that the crank arm is at
right angles to the push rod when it is at mid-position and so the
+/- linear movement is symmetrical about crank mid position.
Rot_Height=300.0 Height of pitch and
roll center above upper actuator pitch circle - mm
The above platform geometry parameters are used to
define the relative relationship between the platform DOF motions
and the actuator extensions. The geometry dimensions need not be
precise, however major inaccuracies will affect the "orthogonality"
of the final motions - ie the extent to which a single DOF cue
results in a movement in that DOF alone. Note also that the
calculated movement ranges for the platform are written to the
Hexapod_Geometry.txt file in the motion driver directory for
reference.
FALim1=200 The actuator working stroke length in the
position feedback 0-255 scale. For the motion driver's internal
calculations this will be mapped to the actuator working stroke
specified above.
PitchStart=127 The mid stroke positions of
all actuators in the position feedback 0-255 scale.
Example; if your feedback potentiometer voltage output is 0.5 to
4.5V when the actuator moves over it's full working range, assuming
your drive hardware uses a max possible 0-5V voltage range to detect
actuator position then ..
FALim1 = (4.5 - 0.5) / 5 * 255 = 204, and the min and max
positions on the 255 scale are 0.5 / 5 * 255 = 25 and 4.5 / 5
* 255 = 229
And the actuator mid position is, PitchStart = 25 + 204/2 =
127
Reducing the stroke by 10% or so might also help to prevent platform
overshoot from triggering end-of-travel cut-off switches, so
adjusting FALim1 down from 204 to 180 might be useful.
VALim1=10 Actuator start/hold position as a
percentage of actuator stroke length. This is the position to which
the driver will send the motion cue when it first starts and when
subsequently sent to "Hold".
The proportion of full scale movement to utilise use
for each DOF - in percentage of full range. For example maximum
heave range can only be achieved if there is no movement in the
other DOF's
FALim2=100 The percentage of available range the Pitch cue can use.
LALim1=100 The percentage of available range the Roll cue can use.
LALim2=50 The percentage of available range the Heave cue can use.
SU_prop=100 The percentage of available range the Surge cue can use.
SW_prop=100 The percentage of available range the Sway cue can use.
Yaw_prop=50 The percentage of available range the Yaw cue can use.
PITCH CUE SETTINGS
(See the pop-up tool tips in the driver P settings windows for more
details)
FaScaleg=1.0 Scaling factor to be applied to
raw forward accelerations for pitch & surge calcs - when aircraft is on the ground.
FaScalea=1.0 Scaling factor to be applied to
raw forward accelerations for pitch & surge calcs - when aircraft is in the air.
TCfg=0.5 Time constant for low frequency isolation filter
for forward acceleration tilt cue - when aircraft is on ground - secs/rad.
TCfa=0.5 Time constant for low frequency
isolation filter for forward acceleration tilt cue - when aircraft
is in air
FaCap=10.0 Cap level for scaled forward
acceleration magnitude that will be processed for cue in m/s^2.
TCpa=0.0 Time constant for low pass filter to washout pitch accel part of cue in sec/rad.
RateP=1.0 Proportion of pitch angle to be added for pitch
rate contribution.
TCpr=3.0 Time constant for high pass filter to washout pitch
rate part of cue in sec/rad.
FAMax=1.0 +/- Pitch angle cue demand that will give full
scale rotation of rig in radians.
Pitch_Rev=1 Reverse pitch output sense, =0 No, =1 Yes
SURGE CUE SETTINGS
(See the pop-up tool tips in the driver P settings windows for more
details)
TCSUg=2.00 Time constant for high frequency isolation
filter for forward accel for surge cue - when aircraft is on ground
- secs/rad
TCSUa=2.00 When in air.
SUaCap=3.730 Cap level for
scaled forward
acceleration magnitude that will be processed for cue in m/s^2.
TCSU1a=0.1 Time constant for low pass filter to smooth surge
cue in sec/rad - in-air ops...
TCSU1g=0.1 On ground ops...
SUaMax=3.730 +/- Surge
scaled
accel demand that will give full scale movement of rig in m/s^2.
Surge_Rev=0 Reverse output sense, =0 No, =1 Yes.
ROLL CUE SETTINGS
(See the pop-up tool tips in the driver R settings windows for more
details)
LaScaleg=1.0 Scaling factor to be applied to
raw lateral accelerations for roll & sway calcs - when aircraft is on the ground.
LaScalea=1.0 Scaling factor to be applied to
raw lateral accelerations for roll & sway calcs- when aircraft is in the air.
TCllg=0.5 Time constant for low frequency isolation filter
for lateral acceleration tilt cue - when aircraft is on ground - secs/rad.
TClla=0.5 Time constant for low frequency
isolation filter for lateral acceleration tilt cue - when aircraft is in
air.
LaCap=10.0 Cap level for lateral
acceleration magnitude that will be processed for cue in m/s^2.
TCla=0.0 Time constant for low pass filter to washout roll accel part of cue in sec/rad.
RateF=1.0 Proportion of pitch angle to be added for roll
rate contribution.
TCpr=3.0 Time constant for high pass filter to washout roll
rate part of cue in sec/rad.
LAMax=1.0 +/- Roll angle cue demand that will give full
scale rotation of rig in radians.
Roll_Rev=1 Reverse roll output sense, =0 No, =1 Yes
SWAY CUE SETTINGS
(See the pop-up tool tips in the driver R settings windows for more
details)
TCSWg=2.00 Time constant for high frequency isolation
filter for lateral accel for sway cue - when aircraft is on ground -
secs/rad
TCSWa=2.00 When in air.
SWaCap=3.730 Cap level for
scaled lateral
acceleration magnitude that will be processed for cue in
m/s^2.
TCSW1a=0.1 Time constant for low pass filter to smooth sway
cue in sec/rad - in-air ops...
TCSW1g=0.1 On ground ops...
SWaMax=3.730 +/- Sway
scaled
accel demand that will give full scale movement of rig in m/s^2.
Sway_Rev=0 Reverse output sense, =0 No, =1 Yes.
HEAVE CUE SETTINGS
(See the pop-up tool tips in the driver H settings windows
for more details)
VaScaleg=1.0 Scaling factor to be applied to
raw vertical accelerations for heave calcs - when aircraft is on the ground.
VaScalea=1.0 Scaling factor to be applied to
raw vertical accelerations for heave calcs - when aircraft is in the air.
TCva=0.1 Time constant for initial low pass
(smoothing) filter of vertical acceleration in sec/rad.
VaPw=1.0 Exponential factor to be applied to accel values
above 1.0m/s^2 to exaggerate response.
VaSat=10.0 Cap level for acceleration magnitude that will be
processed for cue in m/s^2.
TCvp=5.0 Time constant for high pass filter to washout heave
cue in sec/rad.
Turb_Scalea=0.0 Scaling factor to be applied to recorded
light-turbulence heave accel in air.
Turb_Scaleg=1.0 Scaling factor to be applied to generated
heave accel for runway rumble.
TCvf=0.1 Time constant for final low pass (smoothing) filter
of heave cue in sec/rad.
VAMax=10.0 +/- Heave demand that will give
full scale heave of rig (in accel units - m/s^2) set this to the
same value as VaSat.
Heave_Rev=0 Reverse output sense, =0 No, =1 Yes.
YAW CUE SETTINGS
(See the pop-up tool tips in the driver Y settings windows
for more details)
YaScaleg=1.0 Scaling factor to be applied to
raw yaw accelerations for yaw calcs - when aircraft is on the ground.
YaScalea=1.0 Scaling factor to be applied to
raw yaw accelerations for yaw calcs - when aircraft is in the air.
TCya=0.1 Time constant for initial low pass
(smoothing) filter of yaw acceleration in sec/rad.
YaPw=1.0 Exponential factor to be applied to accel values
above 1.0 rad/s^2 to exaggerate response.
YaSat=10.0 Cap level for acceleration magnitude that will be
processed for cue in rad/s^2.
TCyp=5.0 Time constant for high pass filter to washout yaw
cue in sec/rad.
TCyf=0.1 Time constant for final low pass (smoothing) filter
of yaw cue in sec/rad.
YAMax=10.0 +/- yaw demand that will give
full scale yaw of rig (in accel units - rad/s^2) set this to the
same value as YaSat.
Yaw_Rev=0 Reverse output sense, =0 No, =1 Yes.
RUNWAY HEAVE EFFECTS SETTINGS
The runway heave motion is generated from two
superimposed sine waves. The combination of slow and fast sine waves
can be configured using these parameters. The overall effect is
scaled using the Turb_Scaleg parameter in the Heave settings
section. The notional unit of the wave amplitude is m/s^2 and the
resulting value is added to the actual heave acceleration which is
used for the heave cue.
RW_Amp_3=0.0 Slow acceleration sine wave
amplitude at takeoff speed m/s^2.
RW_CPS_3=0.75 Slow sine wave frequency at takeoff speed - in
cycles per second (Hz).
RW_Amp_1=1.0 Fast acceleration sine wave max amplitude
m/s^2, set a very small value to effectively disable if platform
does not have good high freq response.
RW_Dia=0.5 Wheel Diameter for Fast Wave Frequency - m, set
at unrealistically large dia to simulate centerline bumps.
RW_Tos=100.0 Reference take-off speed for calcs - knots.
HOT KEY/BUTTON SETTINGS
MD_Delay=10 Motion Drive
data loop sleep time in ms
Key_Kill=Esc Kill, Prefix, Drive and
Hold hot keys. The drive and hold hot keys require the "Prefix" key
to be held down
Key_Prefix=\ at the same time to operate
Key_Drive=d
Key_Hold=h
Joy_But=1 Joystick number for driver remote
control buttons, =0 to disable, otherwise set to joystick number on
system
But_Kill=2 Kill, Drive and Hold joystick
buttons, set any =0 to disable it (these are active only if Joy_But
is non-zero)
But_Drive=11
But_Hold=10
MISCELLANEOUS SETTINGS
Use_Joy=0 Use Joystick input for
motion input? =0 No, =joystick number for Yes, eg =1 =2 =3 etc. If
active the full range joystick movement will produce +/- 10m/s^2
forward, lateral and heave accelerations which will be used as the
input accelerations for the motion cue calculations. This feature
MUST be used with correctly configured cue settings.
MD_Delay=10
Motion driver data loop sleep time in ms. This can be used to adjust
the balance between motion driver loop time and CPU utilisation of
the driver process. Set =0 to allow the driver process to run at
maximum speed. If the PC spec is good enough this will cause MS9/X
driver to run up to the frame rate of the flight sim, but with a
consequent increase in CPU load. Specifying a delay time will
potentially slow the loop time but will also reduce CPU load. If
there is significant conflict between the driver CPU utilisation and
FSX then it may be better to run the motion driver on a LAN PC.
Priority=Normal
Motion driver process priority. This provides a further setting
which may be used to adjust CPU access for the driver when running
on the same PC as the flight simulator to affect running smoothness.
Scope_Mode=0
By actuator or by DOF scope output, =0 by dof, =1 by actuator.
Park_on_Int=1 Park on sim interrupt mode - this will
cause the driver to send the platform to hold position on any
detected sim flight interruption. Normally simple pauses will cause
the driver to hold position (=0), if =1 the driver will go to hold
when the sim is paused. This is for the X-Plane and Condor versions,
and for the LFS racing sim version.
Drive_on_Start=0
Go to drive mode as soon as the motion driver initialises =1 yes, =0
no (default), setting =1 will also disable the checks made for
X-Plane running on the motion driver PC (ie the driver will start
and go straight to drive even if X-Plane is not running). This is
for the X-Plane version mainly but can also be set on the Condor
version (however drive will not be engaged until UDP data appears
from the flight sim).
Crash_Detect=1.0
Crash detect sensitivity, =1.0 for maximum sensitivity (default), =0
for lowest sensitivity. Intermediate values allowed. Active in
Condor version only... Condor does not provide a "crashed" flag in
its data output, so the motion driver must detect this itself.
Crashes are detected from excessive deceleration rates and this
parameter adjusts the acceleration threshold used to define a crash.
Crash_Gs=5.0 Trigger
acceleration level in G's for crash detect (active in racing car sim
versions). If vehicle acceleration above this value is detected the
motion software assumes a crash has occurred and will send the
motion driver to Hold to protect the platform. Increase the value
make the crash detect less sensitive.
Previous
Contents
Next
|
